Ultimate LRS extension : 16 servo channels

Feature description

Having more than 8 RC channels is more and more required especially for RC planes. It’s not unusual to have such a setup on an RC plane :

  • CH 1 : left aileron
  • CH 2 : rudder
  • CH 3 : throttle
  • CH 4 : elevator
  • CH 5 : right aileron
  • CH 6 : camera tilt
  • CH 7 : camera pan
  • CH 8 : APM mode

Which leaves no channels for additional functions such as flaps, airbrakes, landing gear, lights, parachute and so on.

The beta version of Ultimate LRS provides the ability to use 16 channels rather than 8. Many RC transmitters such as FrSky Taranis or 9xr can send 16 or more RC channels.

Hardware setup

The 16 channels are available on the RX in different ways :

  1. ULRS provides a serial PPM for an APM or Pixhawk or any FC accepting serial PPM. This option is however limited by the ability of the flight controller to manage the additional channels, for example APM is limited to 11 channels.
  2. Using a PPM to servo converter such as this one.
  3. Recommended option:

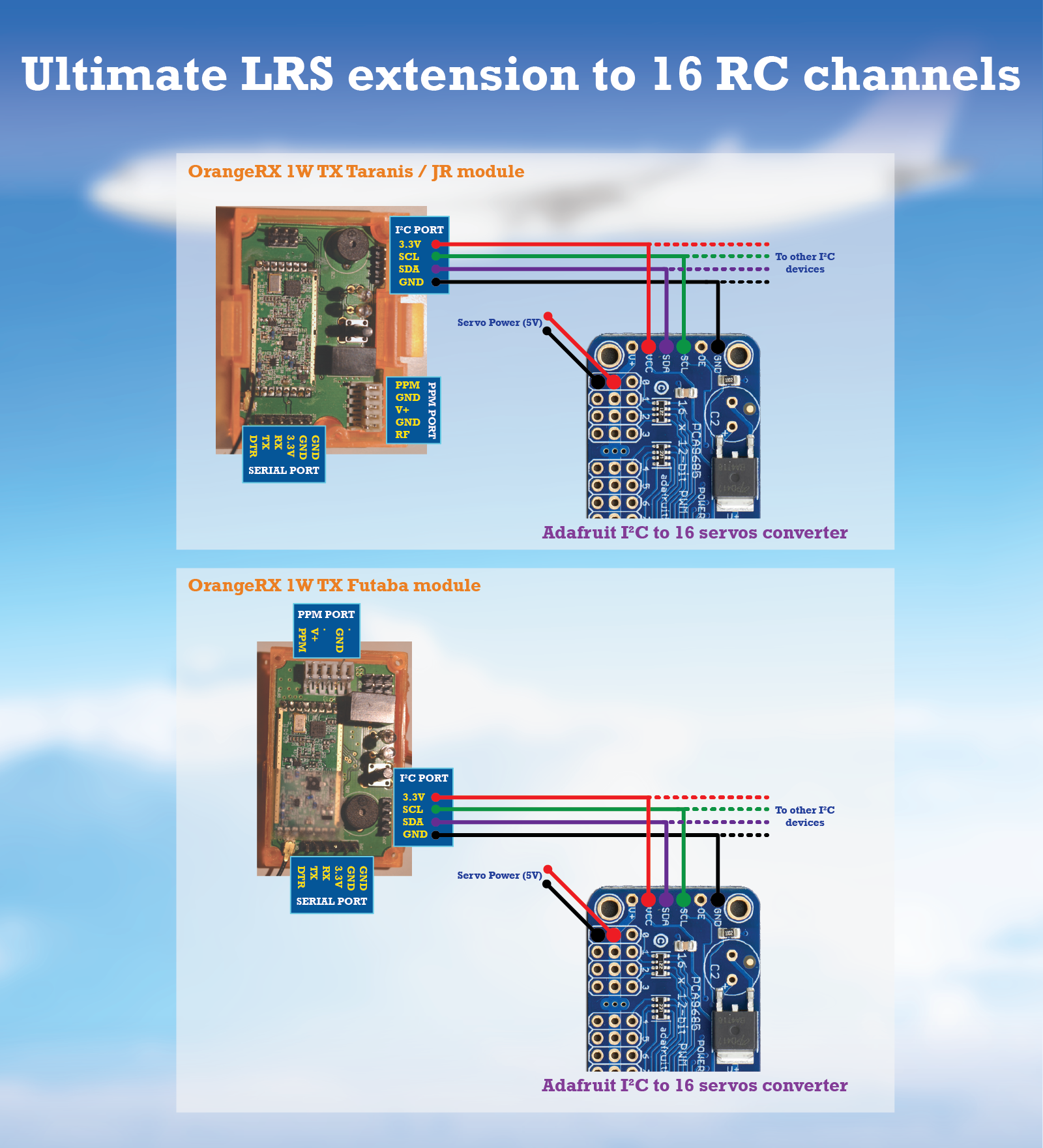

Connection diagram

adafruit-diagram

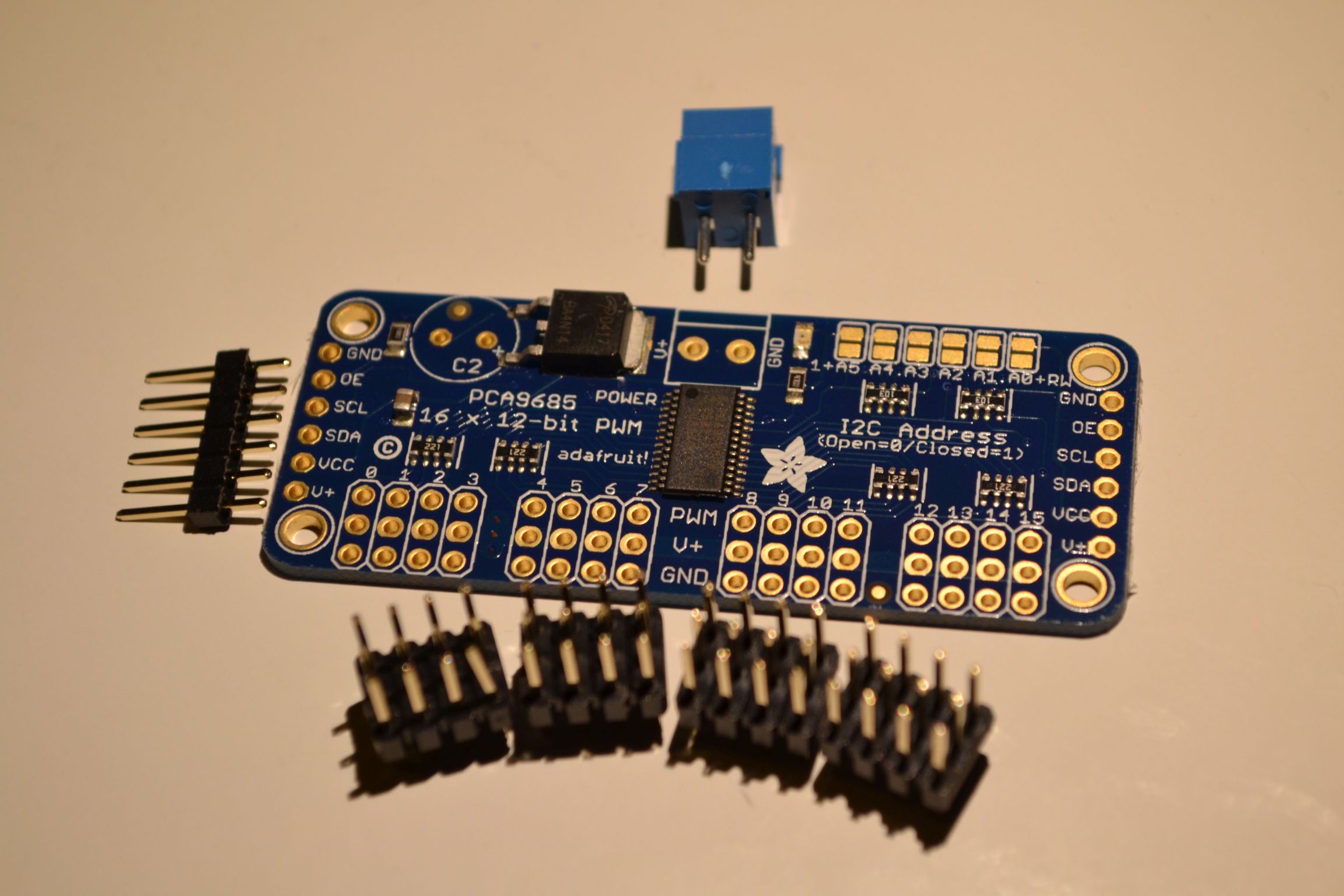

DSC_8225

Remarks

  • The Adafruit module must be connected before the ULRS is turned on (because of a specific initialization sequence sent at start-up)
  • This board is based on a PCA9685 chip (datasheet)

8 comments

  1. Botos Kristóf says:

    Hy,
    So i connect the reciever to the adafruit i2c port. But how can i connect it to the apm? Or how can the apm ise all the 16 channel?

    • admin says:

      The Adafruit module is to be connected directly to the ULRS, there’s no way to connect it to the APM. The APM itself is limited at 11 channels if I’m right, and the Pixhawk to 14 channels.

      • Botos Kristóf says:

        I want to use 16 ch with apm/auto flight. All i need is just connct the rx to the apm and to adafruit with i²c? So i can use all 16 ch, but if i lose signal, apm will use the 4-5 ch to get my plane back home if i setup it correctly?

        • admin says:

          Exactly. APM doesn’t have 16 outputs so you can use the Adafruit option, and in case of failsafe the APM will control your plane with its 8 output, while the Adafruit will output the 16 failsafe values that have been recorded.

  2. Kiruthi Murugan B says:

    But can you simultaneously connect it with pixhawk as well as Pololu controller? I am looking for an automated flight with 24 channels.

    Also will a speed controller like this one work? :

    • admin says:

      24 channels should be possible, but it’s not developped yet. It would take inputs from the RC controller (16 channels) + Pololu. And provide outputs in serial PPM (16 channels) + Pololu.

  3. Rui Costa says:

    Hello, the code for extended channels is implemented? It’s would be very nice to have this possibility.
